In the world of industrial engineering, small components often play the biggest roles. One such underrated yet critical part is the disc spring — a compact powerhouse used in countless applications.
Let’s explore what disc springs are, how they work, and where they’re used across industries.
🔍 What Is a Disc Spring?

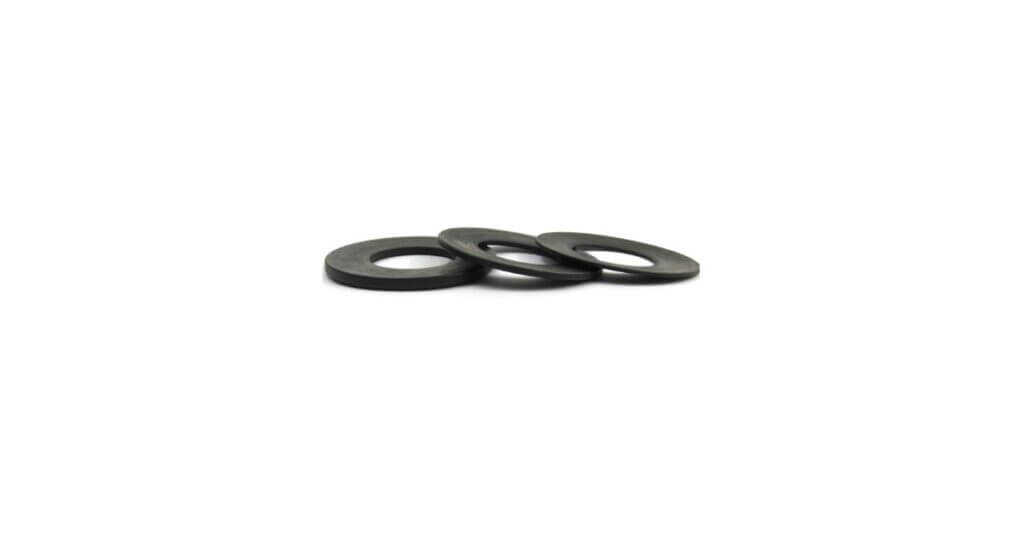

A disc spring, also known as a Belleville washer, is a conical-shaped metal disk designed to bear axial loads. Unlike traditional coil springs, disc springs are compact in shape but capable of generating very high forces with short deflection. They are often made from high-grade spring steels like 50CrVA, 60Si2MnA, or stainless alloys.
Disc springs can be used individually or stacked in different configurations (series or parallel) to achieve desired load and travel characteristics.
⚙️ Key Features of Disc Springs:
High force output in small space
Predictable, repeatable performance
Long fatigue life with proper heat treatment
Adjustable stiffness through stacking
Suitable for dynamic and static applications
🏭 Where Are Disc Springs Used?
✅ 1. Valves and Flange Assemblies
Used to maintain tight seals and absorb vibration in high-pressure fluid systems.
✅ 2. Automotive Clutches and Brakes
Provides quick response and durability in transmission systems and heavy-duty braking.
✅ 3. Wind and Hydro Turbines
Handles high dynamic loads, helps prevent system failure under vibration and pressure variations.
✅ 4. Aerospace Components
Used in actuators and mechanisms that require lightweight but high-load performance.
✅ 5. Robotics and Automation
Supports precision positioning systems and dynamic movements where accuracy is crucial.
✅ 6. Electrical and Power Systems
Ensures reliable contact pressure in circuit breakers and switches.
🔧 Why Choose Disc Springs Over Coil Springs?
Disc springs take up less axial space, offer better load control, and can be customized easily for specific needs. They’re also more durable in harsh environments, especially with proper surface and heat treatments.
📢 Conclusion
Whether you’re working in energy, automotive, aerospace, or general industrial manufacturing — disc springs offer compact strength and dependable performance. At Three Ants Precision Machinery, we design and manufacture disc springs that meet global quality standards and perform in the most demanding environments.
Need help choosing the right disc spring for your application?
👉 Contact our team for expert advice and custom solutions.
