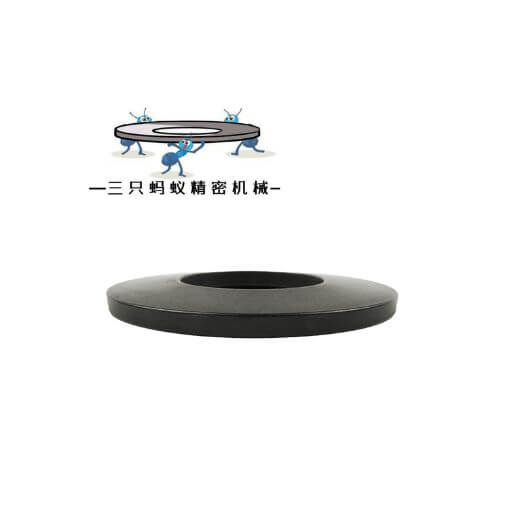

High Temperature Disc Springs made from Nickel and Cobalt-based alloys are designed to deliver consistent performance in extreme thermal environments—withstanding temperatures up to 700°C and beyond.
These springs provide exceptional fatigue resistance, creep resistance, and oxidation protection, making them ideal for use in power plants, aerospace engines, chemical processing units, and high-pressure valve systems. Materials include Inconel 718, Hastelloy, Waspaloy, and Cobalt-based Haynes alloys, ensuring long life and minimal maintenance even under severe cyclic loading.
| Short Name | GB/YB | AISI / ASTM | DIN | Working Temperature (℃) | Thickness Range (mm) |
|---|---|---|---|---|---|
| NiCr 20 Co 18 Ti (Nimonic 90) | GH4090 | HEV6 / 5829C (AMS) | 2.4632 / 2.4969 | -200 to +700 | 0.1 – 20 |
| NiCr 15 Fe 7 Ti Al (Inconel X-750) | GH4145 | 688 / 5542L (AMS) | 2.4669 | -200 to +600 | 0.1 – 20 |
| NiCr 19 NbMo (Inconel 718) | GH4169 | 5596J (AMS) | 2.4668 | -200 to +600 | 0.1 – 20 |
| Item No. | D (Outer Diameter) | d (Inner Diameter) | t (Thickness) | H₀ (Free Height) |
|---|---|---|---|---|
| Ral-3 001 | 13.00 | 8.50 | 2.00 | 3.00 |
| Ral-3 002 | 15.50 | 10.50 | 2.00 | 3.00 |
| Ral-3 003 | 16.00 | 8.20 | 0.40 | 0.90 |
| Ral-3 004 | 17.00 | 10.50 | 1.00 | 2.30 |
| Ral-3 005 | 18.30 | 10.50 | 1.50 | 2.05 |
| Ral-3 006 | 18.50 | 10.50 | 2.00 | 3.00 |
| Ral-3 007 | 18.50 | 12.50 | 2.00 | 3.00 |
| Ral-3 008 | 19.05 | 9.65 | 1.02 | 1.50 |
| Ral-3 009 | 20.00 | 10.20 | 0.80 | 1.35 |
| Ral-3 010 | 20.00 | 10.20 | 1.20 | 1.75 |
| Ral-3 011 | 20.00 | 12.20 | 0.80 | 1.35 |
| Ral-3 012 | 20.00 | 12.50 | 2.00 | 3.00 |
| Ral-3 013 | 22.20 | 11.30 | 1.20 | 1.70 |
| Ral-3 014 | 22.23 | 11.23 | 1.14 | 1.70 |
| Ral-3 015 | 22.40 | 15.20 | 1.00 | 2.30 |
| Ral-3 016 | 25.00 | 12.20 | 0.80 | 1.50 |
| Ral-3 017 | 25.00 | 12.20 | 0.90 | 1.60 |
| Ral-3 018 | 25.00 | 12.20 | 1.00 | 1.80 |
| Ral-3 019 | 25.00 | 12.20 | 1.20 | 1.95 |
| Ral-3 020 | 25.00 | 12.20 | 1.50 | 2.05 |
