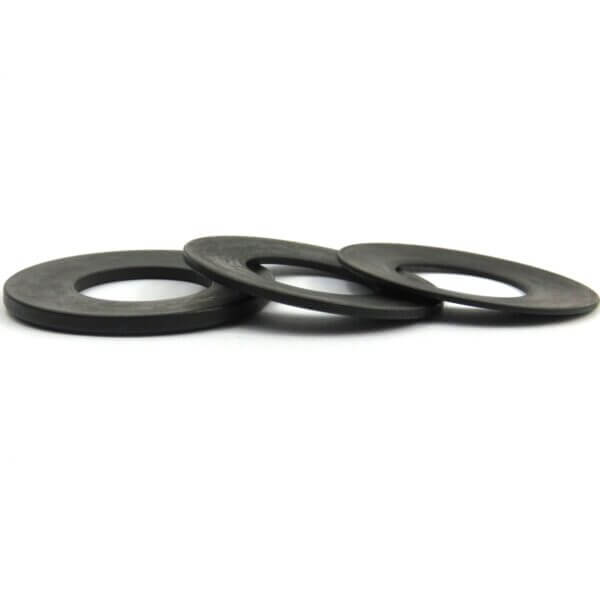

Disc Spring [X 10 CrNi 18-8]

  • 🛡️ 301 Stainless Steel: Excellent corrosion resistance and high fatigue strength for industrial environments.
  • 🔥 17-7PH Steel: Withstands up to 300°C, ideal for high-temperature and high-load applications.
  • 💧 304 Stainless Steel: Versatile and reliable in moist and mildly corrosive environments.
  • ⚙️ 316 Stainless Steel: Superior resistance to chemicals and saltwater, perfect for marine and chemical industries.
  • 🏭 17-4PH (630): High strength and hardness after heat treatment, used in aerospace and valve systems.
  • 🔩 15-7MoPH (632): Excellent spring properties with enhanced corrosion and fatigue resistance.
  • 📏 631 (17-7PH): Delivers long service life with stable performance in cyclic loading applications.
  • 🌡️ 1.4568 DIN Grade: Outstanding mechanical properties across a wide temperature range up to +300°C.

Our corrosion-resistant disc spring steel grades are engineered to perform reliably in harsh environments. These materials, including stainless steels like 301, 304, 316, and precipitation-hardened alloys such as 17-4PH and 17-7PH, provide excellent strength, fatigue resistance, and durability across a wide range of temperatures (from -200°C up to +300°C). With thickness ranges from 0.1 mm to 10 mm, these steels are ideal for demanding industrial applications like valves, flanges, and high-pressure systems where long-term performance and corrosion resistance are critical.

Short nameGB/YBAISI/ASTMDINWorking Temperature (℃)Thickness Range (mm)
X 10 CrNi 18-81Cr17Ni73011.431-200 to +2000.1–4.0
X 5 CrNi 18-101Cr18Ni93041.4301-200 to +2000.1–4.0
X 5 CrNiMo 17-12-20Cr17Ni12Mo23161.4401-200 to +2000.1–4.0
X5CrNiCuNb17-40Cr17Ni4Cu4Nb630 [17-4PH]-200 to +2500.1–4.0
X8CrNiMoAl15-70Cr15Ni7Mo2Al632 [15-7MoPH]-200 to +2500.1–4.0
X7CrNiAl17-70Cr17Ni7Al631 [17-7PH]1.4568-200 to +3000.2–10.0



Item No.D (Outer Diameter)d (Inner Diameter)t (Thickness)H₀ (Free Height)
Ral-3 00113.008.502.003.00
Ral-3 00215.5010.502.003.00
Ral-3 00316.008.200.400.90
Ral-3 00417.0010.501.002.30
Ral-3 00518.3010.501.502.05
Ral-3 00618.5010.502.003.00
Ral-3 00718.5012.502.003.00
Ral-3 00819.059.651.021.50
Ral-3 00920.0010.200.801.35
Ral-3 01020.0010.201.201.75
Ral-3 01120.0012.200.801.35
Ral-3 01220.0012.502.003.00
Ral-3 01322.2011.301.201.70
Ral-3 01422.2311.231.141.70
Ral-3 01522.4015.201.002.30
Ral-3 01625.0012.200.801.50
Ral-3 01725.0012.200.901.60
Ral-3 01825.0012.201.001.80
Ral-3 01925.0012.201.201.95
Ral-3 02025.0012.201.502.05
