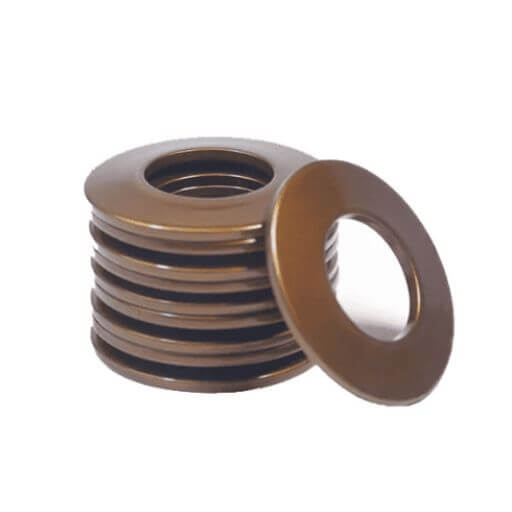

Copper Alloys Disc Springs [CuBe2]

⚡ Excellent Electrical Conductivity: Ideal for electronics, connectors, and sensors.
🌊 Corrosion Resistance: Performs reliably in marine and chemical environments.
🧲 Non-Magnetic Properties: Safe for sensitive magnetic or electronic systems.
🔩 Material Options: Available in Beryllium Copper, Phosphor Bronze, and Brass.
⚙️ Customizable Sizes: Various diameters and thicknesses available on demand.
🛠️ Application Versatility: Used in aerospace, marine, electrical, and defense industries.

🧾 📦 Product Description: Copper Alloys Disc Springs

Copper Alloy Disc Springs are specially engineered for excellent conductivity, corrosion resistance, and non-magnetic properties. These springs are ideal for use in electrical, marine, and aerospace industries where standard steel springs are not suitable.

Made from premium-grade materials like Beryllium Copper, Phosphor Bronze, and Brass, they offer reliable performance in high-vibration, corrosive, and sensitive electronic applications. Available in a range of thicknesses and diameters, customizable to your specific design needs.

Item No.	D (Outer Diameter)	d (Inner Diameter)	t (Thickness)	H₀ (Free Height)
Ral-3 001	13.00	8.50	2.00	3.00
Ral-3 002	15.50	10.50	2.00	3.00
Ral-3 003	16.00	8.20	0.40	0.90
Ral-3 004	17.00	10.50	1.00	2.30
Ral-3 005	18.30	10.50	1.50	2.05
Ral-3 006	18.50	10.50	2.00	3.00
Ral-3 007	18.50	12.50	2.00	3.00
Ral-3 008	19.05	9.65	1.02	1.50
Ral-3 009	20.00	10.20	0.80	1.35
Ral-3 010	20.00	10.20	1.20	1.75
Ral-3 011	20.00	12.20	0.80	1.35
Ral-3 012	20.00	12.50	2.00	3.00
Ral-3 013	22.20	11.30	1.20	1.70
Ral-3 014	22.23	11.23	1.14	1.70
Ral-3 015	22.40	15.20	1.00	2.30
Ral-3 016	25.00	12.20	0.80	1.50
Ral-3 017	25.00	12.20	0.90	1.60
Ral-3 018	25.00	12.20	1.00	1.80
Ral-3 019	25.00	12.20	1.20	1.95
Ral-3 020	25.00	12.20	1.50	2.05
